+79261581356 (Алексей)KRAMER VA-14
 |
4-канальный микшер звуковых балансных моносигналов
Цена:
62 775
руб.
|

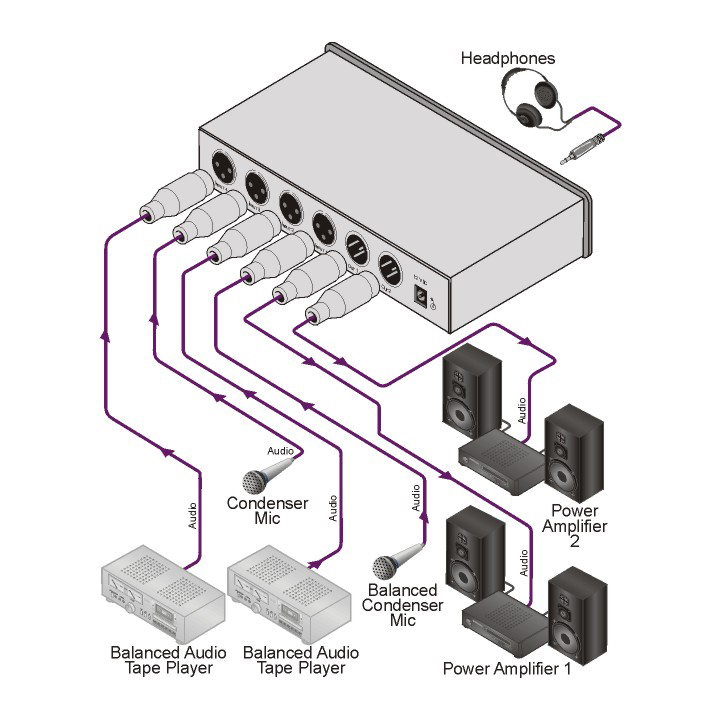

The VA-14 is a high performance 4-channel mixer for mono balanced audio signals on XLR connectors. The unit inputs 4 channels of any combination of balanced, line or microphone level audio signals, and outputs to 2 balanced mixed audio outputs and a headphone signal output.
- S/N Ratio - Mic in, phones out: 45.3db. Line in, phones out: 83.3dB. Line in, line out: 84.3dB. Mic in, line out: 64dB.
- Inputs - 4 line or microphone level (individually selectable).
- Outputs - 2 line or microphone level (Individually selectable) - 1 phone output.
- Phantom Power - 48V DC on each input (individually selectable).
- Level (Gain) Control - Individual for each input & master and headphone output.
- Desktop Size - Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adapter.
| INPUTS: | 4 balanced audio, Line or Mic, on female XLR connectors |
|---|---|
| OUTPUTS: | 2 audio, balanced on a male XLR connector One headphone output on a 6.5mm connector |
| MAX. OUTPUT LEVEL: | Line: 20Vpp; Phones: 4.5Vpp; Mic: 300mVpp |
| BANDWIDTH (-3dB): | > 40 kHz |
| S/N RATIO: | Mic in, Phones Out: 45.3dB Line In, Phones Out: 83.3dB Line In, Line Out: 84.3dB Mic In, Line Out: 64dB |
| CROSSTALK (all hostile): | Mixed inputs |
| CONTROLS: | Line In, Line Out: <-57dB to -14.3dB Mic In, Line Out; <0dB to 60.5dB Line In, Phones Out: <-47dB to -18dB Mic In, Phones Out: <0dB to 58.9dB In level and master/phones level, min to max position for both Line In, MIC OUT range: <-50dB to -25dB Mic In, Mic Out range:<0dB to 21.6dB Underside slide switches: inputs: Line/Mic and +48V phantom ON/OFF Outputs: Line/Mic |
| COUPLING: | In: AC; out: bal line/mic – DC; phones, AC |
| AUDIO THD + NOISE: | Line In, Line Out: 0.007%; Mic In, Line Out: 0.15% Line In, Phones Out: 0.085% Mic In, Phones Out: 0.38% |
| AUDIO 2nd HARMONIC: | Line In, Line Out: 0.001%; Mic In, Line Out: 0.005% Line In, Phones Out: 0.009%; Mic In, Phones Out: 0.024% |
| POWER SOURCE: | 12 V, 250mA DC |
| DIMENSIONS: | 21.5cm x 16.2cm x 4.4cm (8.46" x 6.38" x 1.73"), W, D, H |
| WEIGHT: | 1.4 kg. (3.1 lbs.) approx. |
| ACCESSORIES: | Power supply |
| OPTIONS: | 19" rack adapter |
